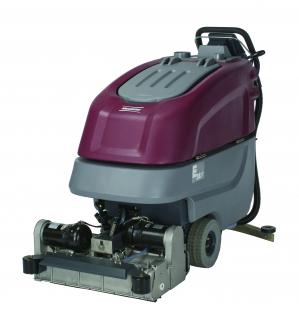

E24

Key Features:

Cylindrical deck has an integrated sweeping function and is made of corrosion-resistant aluminum casting
On-board charger is convenient and allows the machine to be charged anywhere
19 gallon solution tanks and 19.5 gallon recovery tanks
Squeegees are designed so that no operator adjustment is necessary
Parabolic squeegee standard on traction drive models and option on brush drive models
Easy-to-clean, hygienic recovery tank
When the on-board charger is plugged in, the machine is not operable
Adjustable handle and ergonomic hand bails offer superior handling of the machine
Ergonomic, adjustable speed regulation with the turn of a dial

Download Brochure How To Demo Get a Quote

Ease of Use

Easy-to-understand controls ensure that the machine is simple to operate
Compact design results in total operator comfort by focusing on ergonomics
Sleek design provides an excellent line of sight to the area to be cleaned

Specifications

Brush Type: Cylindrical
Drive Motor: .42 HP (313 W)
Number of Brushes: 2
Performance: 32,736 ft2 / hr (3,041 m²)
Recovery Capacity: 19.5 Gal (74 liters)
Solution Capacity: 19 Gal (72 liters)
Squeegee Width: 35.4 in (90 cm)

Vacuum Flow: 65 cfm (110 m³/hr)
Vacuum Power: .86 HP (640 W)
Vacuum Waterlift: 65 inches (162 mbar)
Weight: 787 lbs (357 kg)
Weight without drive/batteries: 346 lbs (157 kg)
Working Speed: 3.1 mph (5 km per hr)

Green Features

Sound level < = 70dBs
Maintenance free gel batteries available
Tool free brush removal
Tool free squeegee removal
One button operation
Ergonomically designed for ease of use

Parts and User Manuals

E24 Cylindrical Brush Drive Parts Manual

E24 Cylindrical Brush Drive User Manual
