E20 Cylindrical
General Overview
The E20 is a compact scrubber with a 20” cleaning path, available in disc and cylindrical
Disc model offered in brush drive or traction drive, cylindrical model is traction drive
Advanced technology makes the E20 a part of the innovative walk-behind scrubber line, the E Series

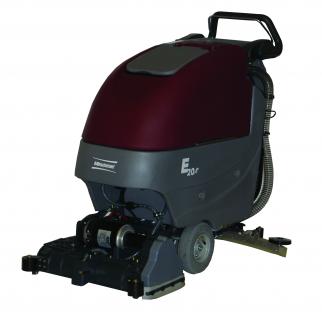

E20 Cylindrical Commercial Floor Scrubber
Key Features:

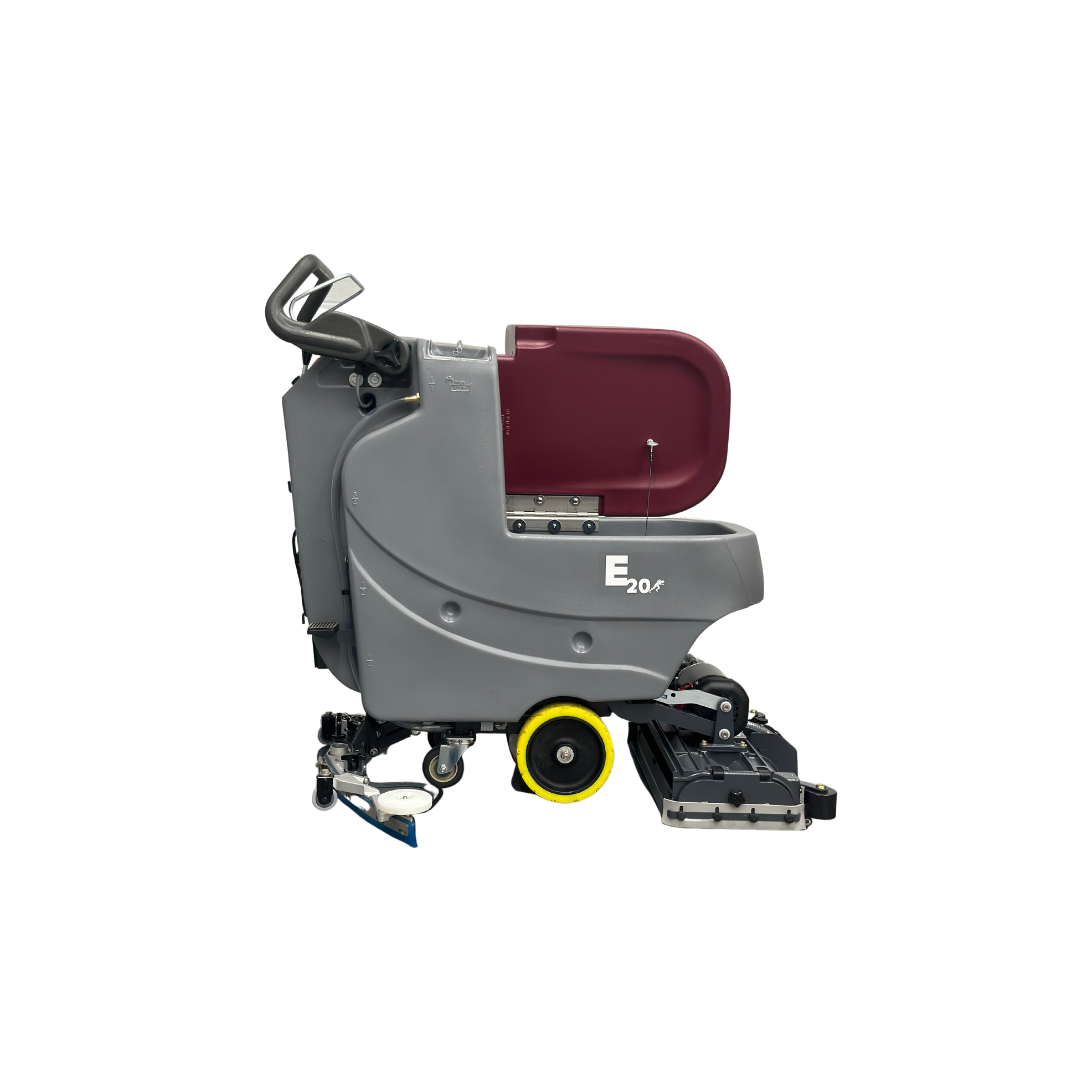

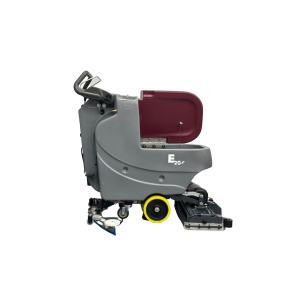

On-board charger is convenient and allows the machine to be charged anywhere
Brush loading/unloading is as easy as the turn of a switch, the operator never has to manually remove the brushes
12 gallon solution tanks and 13 gallon recovery tanks
Squeegees are designed so that no operator adjustment is necessary
Parabolic squeegee standard on traction drive models and option on brush drive models
Easy-to-clean, hygienic recovery tank
When the on-board charger is plugged in, the machine is not operable
Adjustable handle and ergonomic hand bails offer superior handling of the machine
Traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial
Download Lit
Get a Quote
More Information:
Click the titles below to learn more.
Ease of Use
The E20 covers 20,000 sq. ft. per hour (1,858m²) *based on traction driven model
Low brush deck is ideal for cleaning around and underneath obstacles
Small, compact design allows for cleaning even in tight spaces
Easy-to-understand controls ensure that the machine is simple to operate
Compact design results in total operator comfort by focusing on ergonomics
Sleek design provides an excellent line of sight to the area to be cleaned
Specifications
Brush Speed:
600 rpm
Brush Type:
Cylindrical
Drive Motor:
1/5 HP (150 W)
Number of Brushes:
2
Performance:
27,280 ft2 /hr (2,534 m²)
Rated Voltage:
24 Volts
Recovery Capacity:
13 Gal (49 liters)
Solution Capacity:
12 Gal (45 liters)
Squeegee Width:
33 in (84 cm)
Vacuum Flow:
65 cfm (110 m³/hr)
Vacuum Power:
.60 HP (450 W)
Vacuum Waterlift:
45 inches ( 112mbar)
Weight:
360 lbs (163 kg)
Weight without drive/batteries:
238 lbs (108 kg)
Working Speed:
3.1 mph (5 km per hr)
Green Features
Sound level < = 70dBs
Maintenance free gel batteries available
Tool free brush removal
Tool free squeegee removal
One button operation
Ergonomically designed for ease of use
Parts and User Manuals
E20 Cylindrical Traction Drive Parts Manual
E20 Cylindrical Traction Drive User Manual
